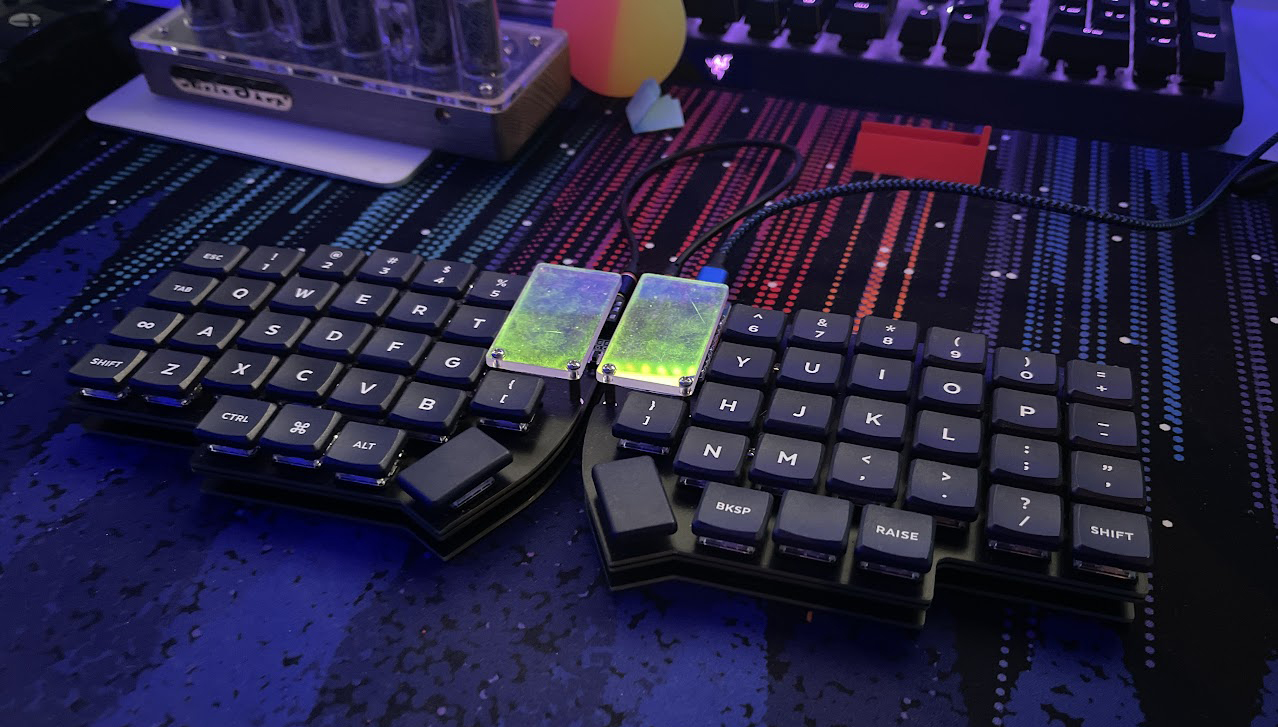

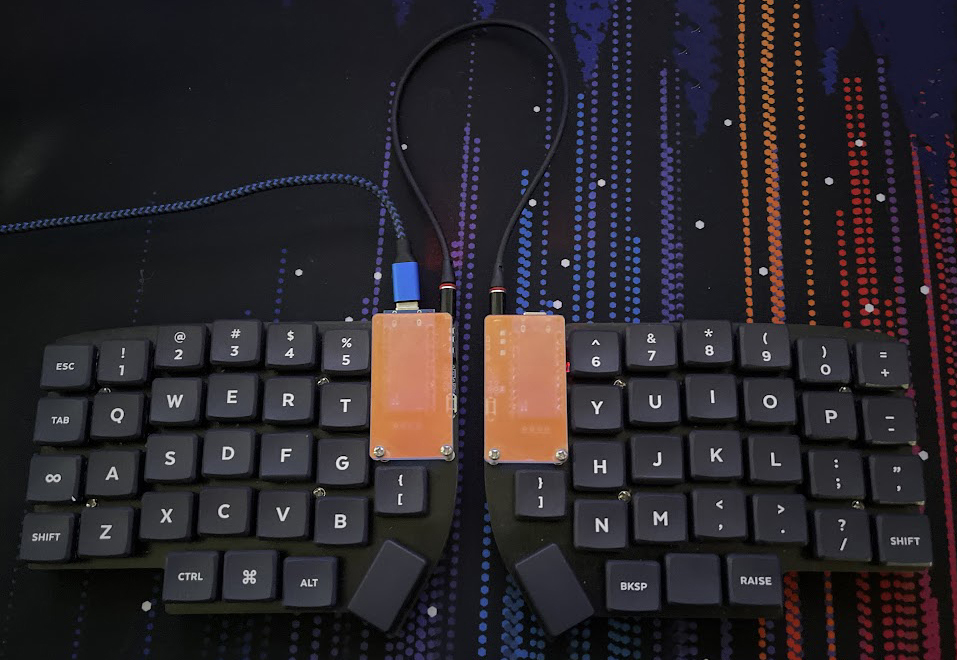

How to build the Callan58
If I were to do this again, I would use a nice!nano instead of the Pro Micro for wireless functionality
|
|
- Buy the parts
- Solder the switchs or the hotswap sockets, diodes and controller onto the keyboard pcb here is a vod of this being done
- Add the other plates to the pcb and install switches and keycaps
- Install QMK and follow instructions to learn how to flash the controllers
- Enjoy
Here is the map I use on mine
#include QMK_KEYBOARD_H
enum layer_number {
_QWERTY = 0,
_LOWER,
_RAISE,
_ADJUST,
};
const uint16_t PROGMEM keymaps[][MATRIX_ROWS][MATRIX_COLS] = {
/* QWERTY
* ,-----------------------------------------. ,-----------------------------------------.
* | ESC | 1 | 2 | 3 | 4 | 5 | | 6 | 7 | 8 | 9 | 0 | = |
* |------+------+------+------+------+------| |------+------+------+------+------+------|
* | Tab | Q | W | E | R | T | | Y | U | I | O | P | - |
* |------+------+------+------+------+------| |------+------+------+------+------+------|
* |RAISE | A | S | D | F | G |-------. ,-------| H | J | K | L | ; | ' |
* |------+------+------+------+------+------| [ | | ] |------+------+------+------+------+------|
* |LShift| Z | X | C | V | B |-------| |-------| N | M | , | . | / |RShift|
* `-----------------------------------------/ / \ \-----------------------------------------'
* | LCTRL| LGUI |LAlt | /Space / \Space \ |BackSP| |RGUI| RAISE|
* | | | |/ / \ \ | | | |
* `----------------------------' '------''--------------------'
*/
[_QWERTY] = LAYOUT(
KC_ESC, KC_1, KC_2, KC_3, KC_4, KC_5, KC_6, KC_7, KC_8, KC_9, KC_0, KC_EQUAL,
KC_TAB, KC_Q, KC_W, KC_E, KC_R, KC_T, KC_Y, KC_U, KC_I, KC_O, KC_P, KC_MINS,
MO(_RAISE), KC_A, KC_S, KC_D, KC_F, KC_G, KC_H, KC_J, KC_K, KC_L, KC_SCLN, KC_QUOT,
KC_LSFT, KC_Z, KC_X, KC_C, KC_V, KC_B, KC_LBRC, KC_RBRC, KC_N, KC_M, KC_COMM, KC_DOT, KC_SLSH, KC_RSFT,
KC_LCTRL, KC_LGUI, KC_LALT, KC_SPC, KC_SPC, KC_BSPC, KC_RGUI, MO(_RAISE)
),
/* LOWER
* ,-----------------------------------------. ,-----------------------------------------.
* | | | | | | | | | | | | | |
* |------+------+------+------+------+------| |------+------+------+------+------+------|
* | F1 | F2 | F3 | F4 | F5 | F6 | | F7 | F8 | F9 | F10 | F11 | F12 |
* |------+------+------+------+------+------| |------+------+------+------+------+------|
* | ` | ! | @ | # | $ | % |-------. ,-------| ^ | & | * | ( | ) | - |
* |------+------+------+------+------+------| [ | | ] |------+------+------+------+------+------|
* | | | | | | |-------| |-------| | _ | + | { | } | | |
* `-----------------------------------------/ / \ \-----------------------------------------'
* | LAlt | LGUI |LOWER | /Space / \Enter \ |RAISE |BackSP| RGUI |
* | | | |/ / \ \ | | | |
* `----------------------------' '------''--------------------'
*/
[_LOWER] = LAYOUT(
XXXXXXX, XXXXXXX, XXXXXXX, XXXXXXX, XXXXXXX, XXXXXXX, XXXXXXX, XXXXXXX, XXXXXXX,XXXXXXX, XXXXXXX, XXXXXXX,
KC_F1, KC_F2, KC_F3, KC_F4, KC_F5, KC_F6, KC_F7, KC_F8, KC_F9, KC_F10, KC_F11, KC_F12,
KC_GRV, KC_EXLM, KC_AT, KC_HASH, KC_DLR, KC_PERC, KC_CIRC, KC_AMPR, KC_ASTR, KC_LPRN, KC_RPRN, KC_TILD,
XXXXXXX, XXXXXXX, XXXXXXX, XXXXXXX, XXXXXXX, XXXXXXX, XXXXXXX, XXXXXXX, XXXXXXX, KC_UNDS, KC_PLUS, KC_LCBR, KC_RCBR, KC_PIPE,
XXXXXXX, XXXXXXX, XXXXXXX, XXXXXXX, XXXXXXX, XXXXXXX, XXXXXXX, XXXXXXX
),
/* RAISE
* ,-----------------------------------------. ,-----------------------------------------.
* | F1 | F2 | F3 | F4 | F5 | F6 | | F7 | F8 | F9 | F10 | F11 | F12 |
* |------+------+------+------+------+------| |------+------+------+------+------+------|
* | ` | | | | | | | | | | | | ` |
* |------+------+------+------+------+------| |------+------+------+------+------+------|
* | | Up | | | |pageup|-------. ,-------|PG DN | | | | Up | |
* |------+------+------+------+------+------| \ | | \ |------+------+------+------+------+------|
* | Left | Down | Right| F10 | F11 | F12 |-------| |-------| | | | Left | Down | Right|
* `-----------------------------------------/ / \ \-----------------------------------------'
* | LCTRL| LGUI |BackSP| /Enter / \Enter \ |BackSP| |RGUI| RAISE|
* | | | |/ / \ \ | | | |
* `----------------------------' '------''--------------------'
*/
[_RAISE] = LAYOUT(
KC_F1, KC_F2, KC_F3, KC_F4, KC_F5, KC_F6, KC_F7, KC_F8, KC_F9, KC_F10, KC_F11, KC_F12,
KC_GRV, XXXXXXX, XXXXXXX, XXXXXXX, XXXXXXX, XXXXXXX, XXXXXXX, XXXXXXX, XXXXXXX, XXXXXXX, XXXXXXX, KC_GRV,
XXXXXXX, KC_UP, XXXXXXX, XXXXXXX, XXXXXXX, KC_PAGE_UP, KC_PAGE_DOWN, XXXXXXX, XXXXXXX, XXXXXXX, KC_UP, XXXXXXX,
KC_LEFT, KC_DOWN, KC_RGHT, KC_F10, KC_F11, KC_F12, KC_BSLS, KC_BSLS, XXXXXXX, XXXXXXX, XXXXXXX, KC_LEFT, KC_DOWN, KC_RGHT,
KC_LCTRL, KC_LGUI, KC_BSPC, KC_ENT, KC_ENT, KC_BSPC, KC_RGUI, MO(_RAISE)
),
/* ADJUST
* ,-----------------------------------------. ,-----------------------------------------.
* | | | | | | | | | | | | | |
* |------+------+------+------+------+------| |------+------+------+------+------+------|
* | | | | | | | | | | | | | |
* |------+------+------+------+------+------| |------+------+------+------+------+------|
* | | | | | | |-------. ,-------| | |RGB ON| HUE+ | SAT+ | VAL+ |
* |------+------+------+------+------+------| | | |------+------+------+------+------+------|
* | | | | | | |-------| |-------| | | MODE | HUE- | SAT- | VAL- |
* `-----------------------------------------/ / \ \-----------------------------------------'
* | LAlt | LGUI |LOWER | /Space / \Enter \ |RAISE |BackSP| RGUI |
* | | | |/ / \ \ | | | |
* `----------------------------' '------''--------------------'
*/
[_ADJUST] = LAYOUT(
XXXXXXX, XXXXXXX, XXXXXXX, XXXXXXX, XXXXXXX, XXXXXXX, XXXXXXX, XXXXXXX, XXXXXXX, XXXXXXX, XXXXXXX, XXXXXXX,
XXXXXXX, XXXXXXX, XXXXXXX, XXXXXXX, XXXXXXX, XXXXXXX, XXXXXXX, XXXXXXX, XXXXXXX, XXXXXXX, XXXXXXX, XXXXXXX,
XXXXXXX, XXXXXXX, XXXXXXX, XXXXXXX, XXXXXXX, XXXXXXX, XXXXXXX, XXXXXXX, XXXXXXX, XXXXXXX, XXXXXXX, XXXXXXX,
XXXXXXX, XXXXXXX, XXXXXXX, XXXXXXX, XXXXXXX, XXXXXXX, XXXXXXX, XXXXXXX, XXXXXXX, XXXXXXX, XXXXXXX, XXXXXXX, XXXXXXX, XXXXXXX,
XXXXXXX, XXXXXXX, XXXXXXX, XXXXXXX, XXXXXXX, XXXXXXX, XXXXXXX, XXXXXXX
)
};
layer_state_t layer_state_set_user(layer_state_t state) {
return update_tri_layer_state(state, _LOWER, _RAISE, _ADJUST);
}
//SSD1306 OLED update loop, make sure to enable OLED_ENABLE=yes in rules.mk
#ifdef OLED_ENABLE
oled_rotation_t oled_init_user(oled_rotation_t rotation) {
if (!is_keyboard_master())
return OLED_ROTATION_180; // flips the display 180 degrees if offhand
return rotation;
}
// When you add source files to SRC in rules.mk, you can use functions.
const char *read_layer_state(void);
const char *read_logo(void);
void set_keylog(uint16_t keycode, keyrecord_t *record);
const char *read_keylog(void);
const char *read_keylogs(void);
// const char *read_mode_icon(bool swap);
// const char *read_host_led_state(void);
// void set_timelog(void);
// const char *read_timelog(void);
bool oled_task_user(void) {
if (is_keyboard_master()) {
// If you want to change the display of OLED, you need to change here
oled_write_ln(read_layer_state(), false);
oled_write_ln(read_keylog(), false);
oled_write_ln(read_keylogs(), false);
//oled_write_ln(read_mode_icon(keymap_config.swap_lalt_lgui), false);
//oled_write_ln(read_host_led_state(), false);
//oled_write_ln(read_timelog(), false);
} else {
oled_write(read_logo(), false);
}
return false;
}
#endif // OLED_ENABLE
bool process_record_user(uint16_t keycode, keyrecord_t *record) {
if (record->event.pressed) {
#ifdef OLED_ENABLE
set_keylog(keycode, record);
#endif
// set_timelog();
}
return true;
}
